Plug And Socket Waterproof Circular Connectors 5 Pin Aviation Automation Splicer
Advantage / Feature of Waterproof Circular Connectors
- For protection class , IP67 and IP68 are optional , can use indoor and outdoor environment , even the wet environment for a long time
- Approved by CE , UL , TUV , CQC , ROHS etc , the quality of waterproof circualr connector is great and competitive in the market .
- For connector color , usually in black , but the yellow and blue in lock - ring is optional . People can take the suitable one according to your side .
- Different cable size and length are available , wecome to do customization . We will confirm the information with customer .
- Cable specificaton of 5pin waterproof circular connectors: max 1.5mm2 ( 16 AWG ) , can pass high current
- Cable OD : max 10.5mm
Application of M19 Waterproof Jnicon Connector
M19 waterproof circular connector from Jnicon , use the best material , whether it is housing , contact , cable . And the quality of most connector are approved by CE , UL , TUV , CQC , ROHS etc . so the quality is great . It 's competitive in the market .
For application of M19 connector , mainly apply in high current equipment , like lamp requiring high current , automotive charging , new energy , automation equipment , marine electronis , armarium , security and protection etc .
Connector's Datasheet / Specification
| Designation : |
M19 5Pin Connector |
| Item |
Specification |
| 1 .Electrical characteristics |
| Contact Resistance |
10mΩ max. |
| Insulation Resistance |
10MΩ min. |
| Withstand Voltage |
1500V AC There shall be no breakdown. |
| Rating / Current and Voltage |
20A / 300V |
| 2. Mechanical |
| Mating/Unmating force |
Mating & Unmating Force: 10~30N |
| Life test |
Mating & Unmating 500 cycles
|
| 3. Material |
| Contact Plating |
gold plating |
| Contact |
Brass |
| Housing |
PA66 / High performance engineer plastic |

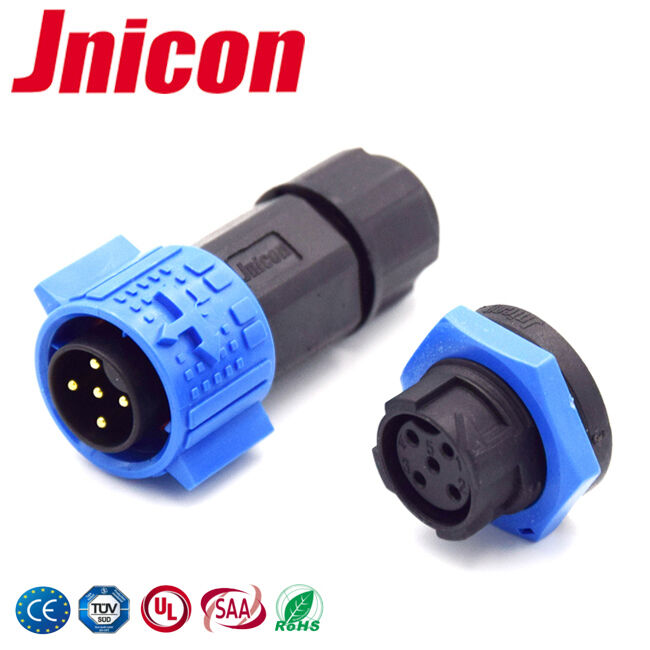

Picture / Photo Show - 5 Pin Waterproof Circular Connectors
Work Process from US
Step 1 : Deal with the inquiry in 24 hours after we got the inquiry
Step 2 : Delivery time about 3 - 5 days in general
Step 3 : We accept customization good whether it is connector , cable , package ,shape etc
Step 4 : Check the connector one by one before the connector is sent out
Step 5 : The tracking number will be provided once we have delivered your goods
Step 6 : Other special requirement / questiongs , just contact me . We will supply support whether it is technology or other things at first time .
